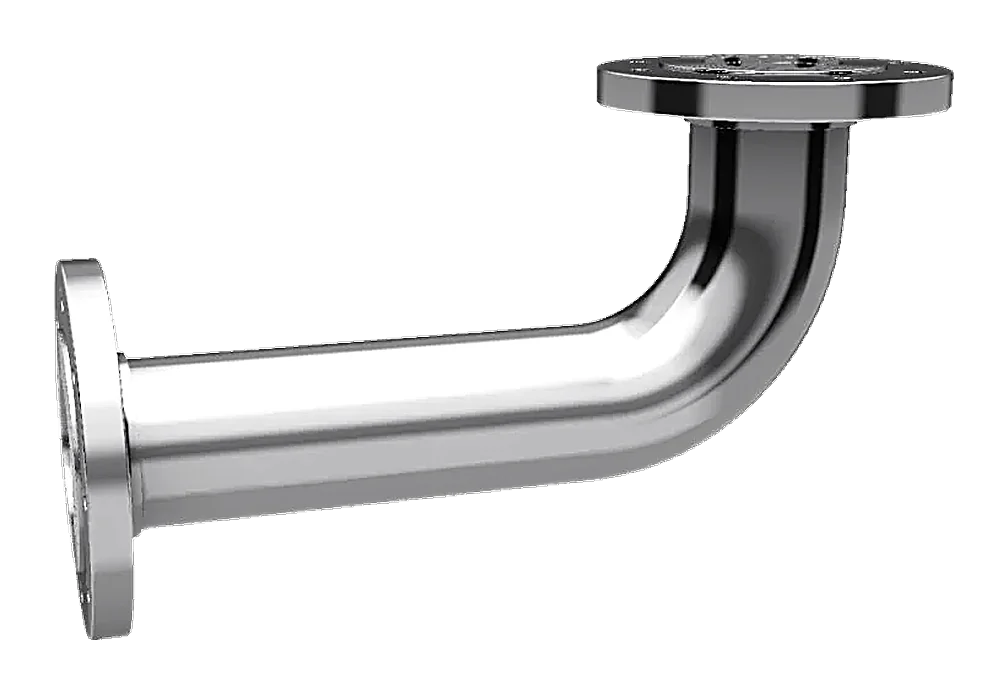

Prefabricated pipe spools
Shop-built to your isometrics, tagged and documented.
Spool fabrication, part of Teshi Group
Process piping spools in India for acid, seawater and steam
Prefabricated spools and piping assemblies built to your isometrics in 904L, duplex, titanium, nickel alloys and steel, using Teshi's own flanges, fittings and bolting, so the whole package traces to one supplier.
- Direct from the manufacturer, not a trader
- Every piece traceable to its mill certificate
- Third-party inspection welcome: any agency you name
- Reply from our estimation team, usually within one working day
Get a quick quote
Tell us the item, size, grade and quantity. We reply with price and delivery.
Reply within 1 working dayNo obligation
Prefer chat? WhatsApp +91 78900 09110Since 1971Manufacturing in India
ISO 9001:2015Certified quality system
IBR approvedBoiler and steam service
CS to TiCarbon steel to titanium and nickel alloys
Trusted by plants and EPCs across India
- AM/NS India
- JSW Steel
- Hindustan Zinc
- Lloyds Engineering
- Utkal Alumina
- Cochin Shipyard
What we supply
Why Teshi
Why plant and EPC buyers choose Teshi
1971Manufacturing flanges, fittings and fabrications in India for over five decades
Direct from the manufacturer
You deal with the people who make it. No trader margin, no lost information between you and the shop floor.
Traceable to the heat
Every piece is marked and linked to its mill certificate. EN 10204 3.1 as standard, 3.2 when witnessed.
Every grade on one order
Carbon steel, alloy, stainless, duplex, nickel alloys and titanium, so a mixed BOQ goes to one supplier.
Inspection your way
Your QAP, your third-party agency, PMI and NDT as specified. Since 1971, ISO 9001:2015 certified and IBR approved.
Send your isometrics for a spool quotation
Send sizes, grades and quantities. Our estimation team usually replies within one working day.
Why buy spools from a flange and fitting maker
Most spool delays come from waiting for flanges and fittings in the right grade. We manufacture those ourselves, so exotic-alloy spools are not held up by a third-party forging order, and every heat number sits in one record.
You also get one point of contact for the spools, the loose flanges, the bolting and the spares.
Material selection guide
| Service | Alloys often specified | Why |
|---|---|---|

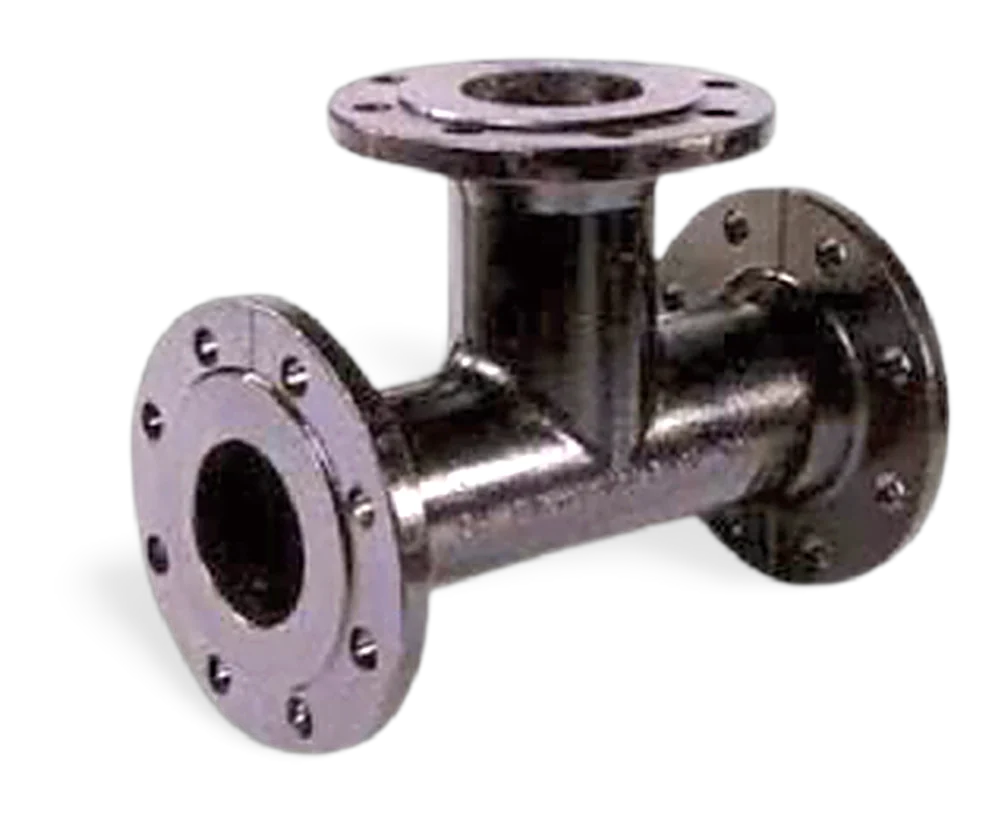

| Dilute and intermediate sulphuric acid | 904L, Alloy 20 | Copper and high nickel keep the alloy passive where 316L corrodes |
| Seawater and brine | Super duplex 2507, 254 SMO, titanium Gr 2, Cu-Ni 90/10 | High PREN or a stable oxide film resists chloride pitting and crevice attack |
| Chlorides with stress (chloride SCC risk) | Duplex 2205, super duplex | The two-phase structure resists chloride stress-corrosion cracking |
| Wet chlorine and hypochlorite | Titanium Gr 2, 7, 12 | Titanium's oxide film is stable in oxidising chlorides |
| Hydrochloric acid and mixed acids | Hastelloy C276 | High molybdenum and tungsten in a nickel base |
| High-temperature steam | A335 P11, P22, P91 with matching forgings | Chrome-moly steels keep creep strength at temperature |
General guidance only. The final material is set by your process licensor or materials engineer.
Welding, testing and traceability

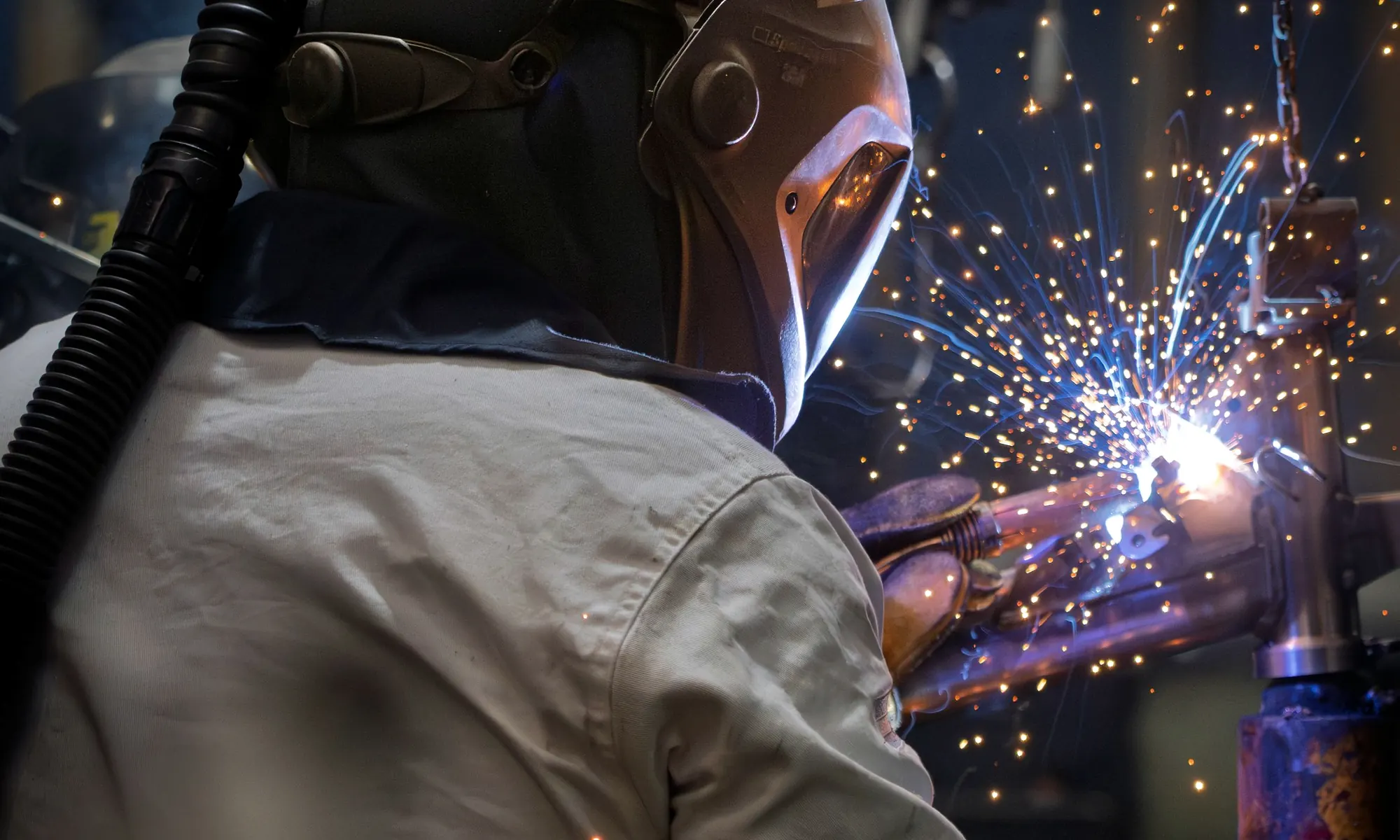

Welding
GTAW root for stainless and exotic alloys with inert-gas purging; procedures and welders qualified to ASME IX.
Testing
- RT or UT per QAP
- Dye penetrant on root and cap
- PMI on alloy components
- Hydrotest where specified
Cleaning
Stainless and nickel alloys pickled and passivated; weld tint removed; ends capped for shipment.
Traceability
Every component's heat number recorded on the weld map, from flanges and fittings we make to pipe from the mill.
Quality
How every order is checked
ISO 9001:2015 certified and IBR approved. The same four checks apply to every order, whether it is a dozen pieces or a full project BOQ.
Raw material check
Mill certificates are checked against the purchase order, and heat numbers are logged when material arrives.
Traceable processing
Heat numbers carry through cutting, forging or forming, machining and welding, so every piece links back to its mill certificate.
Testing and inspection
Dimensional checks, PMI and the NDT your QAP calls for. Third-party inspection is arranged when you specify an agency.
Documents with dispatch
Material test certificates to EN 10204 3.1, or 3.2 when witnessed, with the inspection reports your contract asks for.
Turnaround or project schedule? Plan the spools early.
Send sizes, grades and quantities. Our estimation team usually replies within one working day.
Simple process
How ordering works
Four steps, no surprises.
Send your requirement
BOQ, drawing or a single line by form, email or WhatsApp.
Get a clear quotation
Price, delivery and inspection plan, usually within one working day.
Approve and inspect
QAP and drawings approved; your inspector is welcome at every stage.
Dispatch with documents
Packed, marked and shipped with test certificates and reports.
Where our products go
Industries we supply

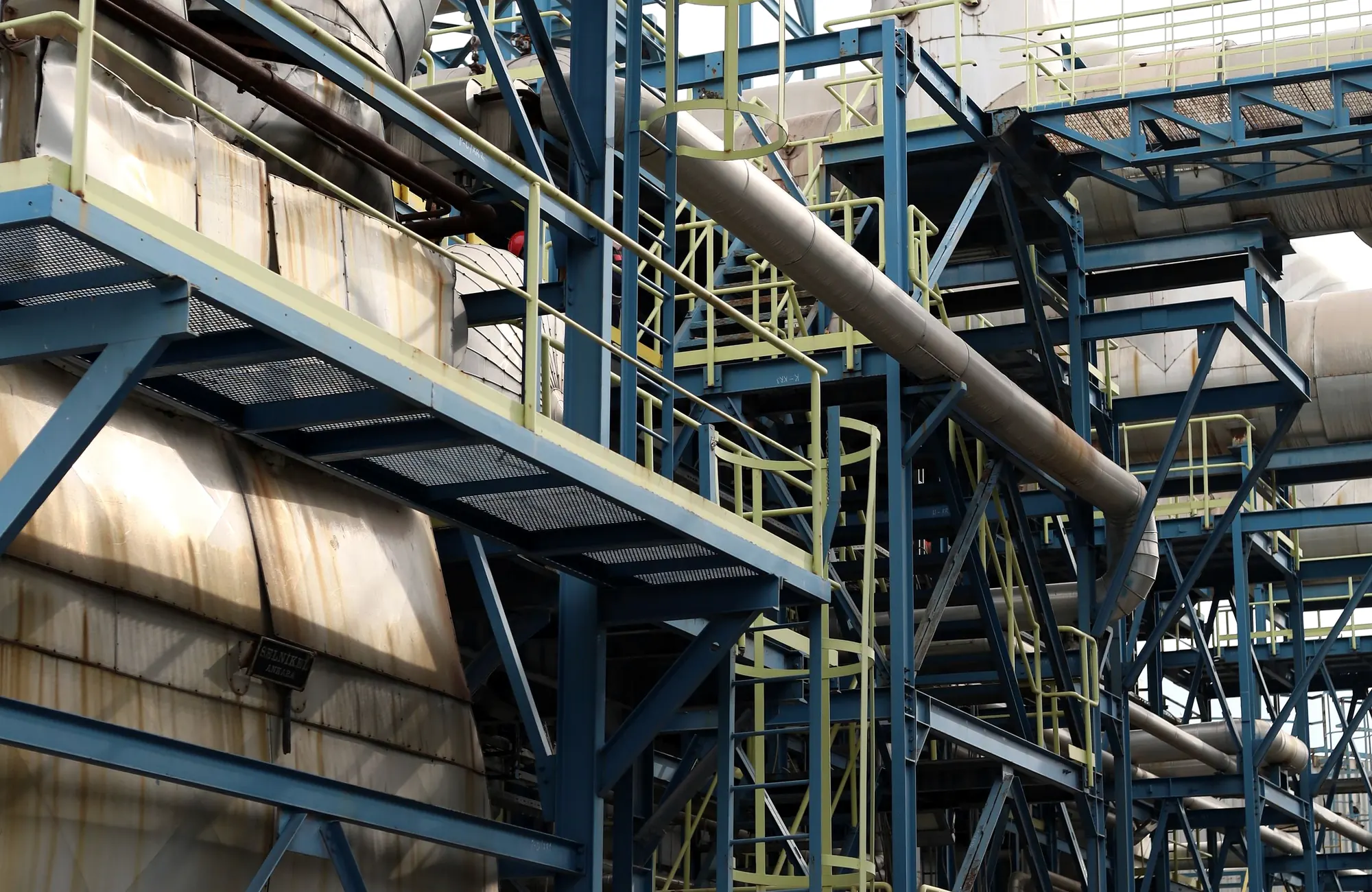

Steel plants
Blast furnace, utilities and process piping
Smelters and chemicals
Acid plants, zinc, copper and alumina

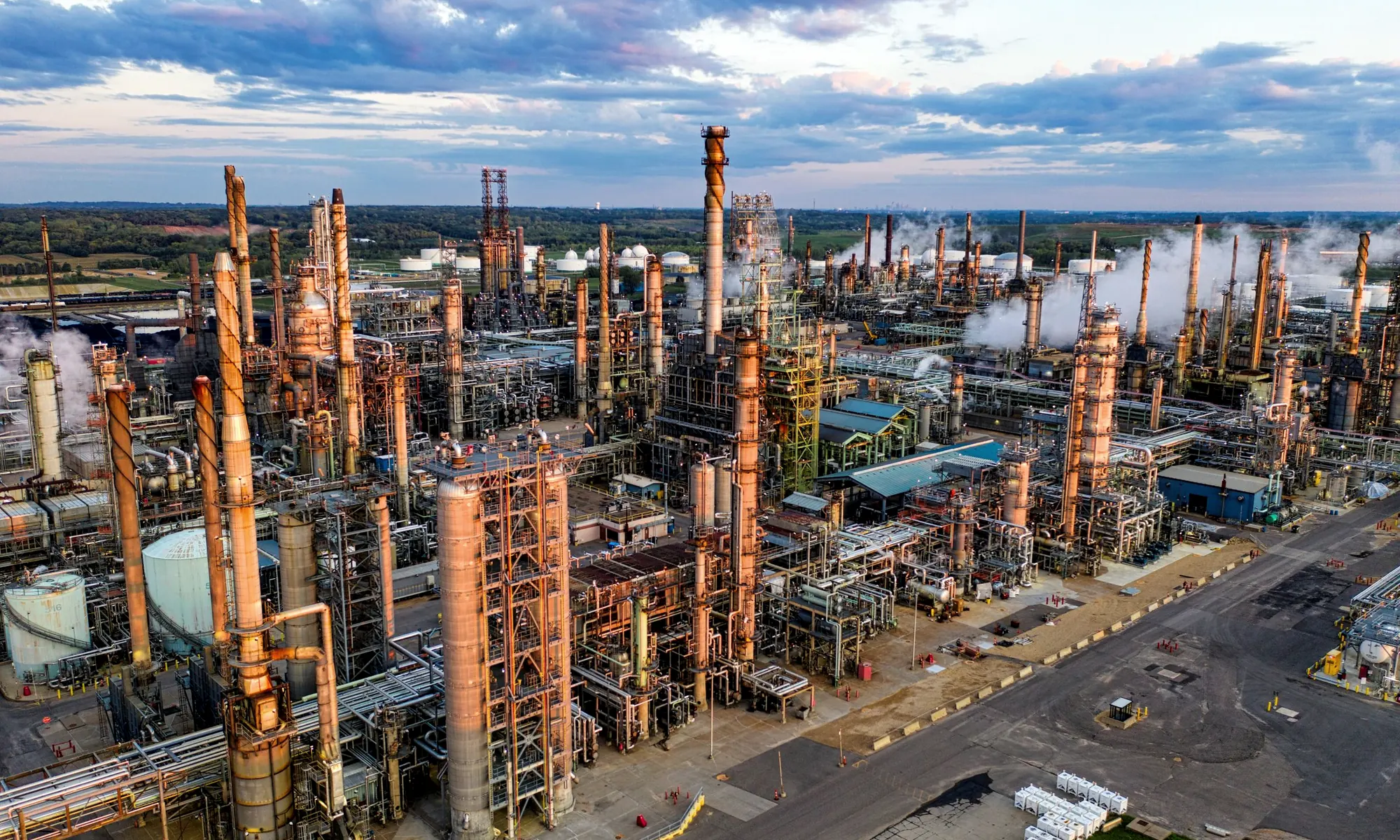

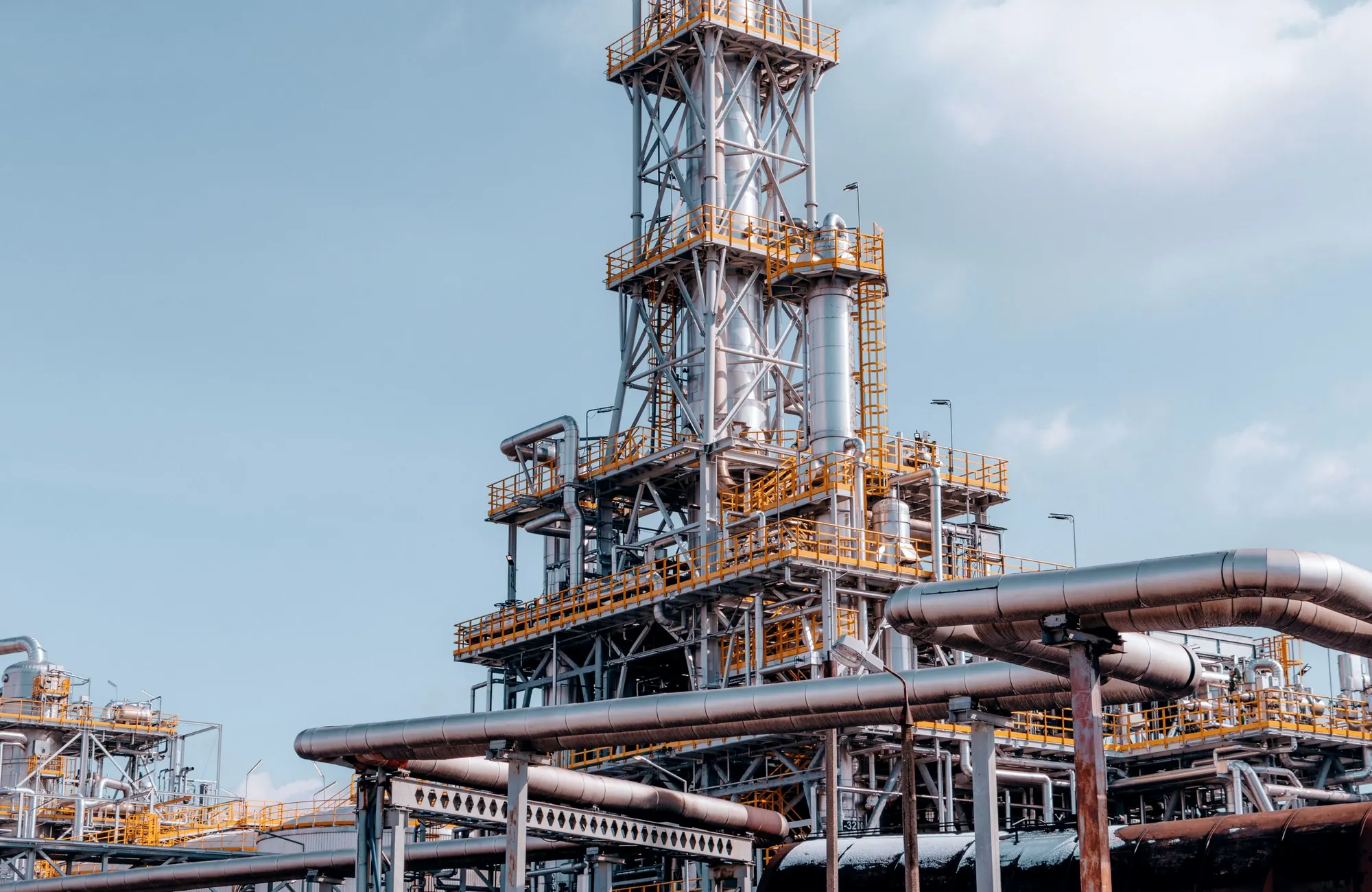

Oil, gas and power
Refineries, petrochemicals and power plants

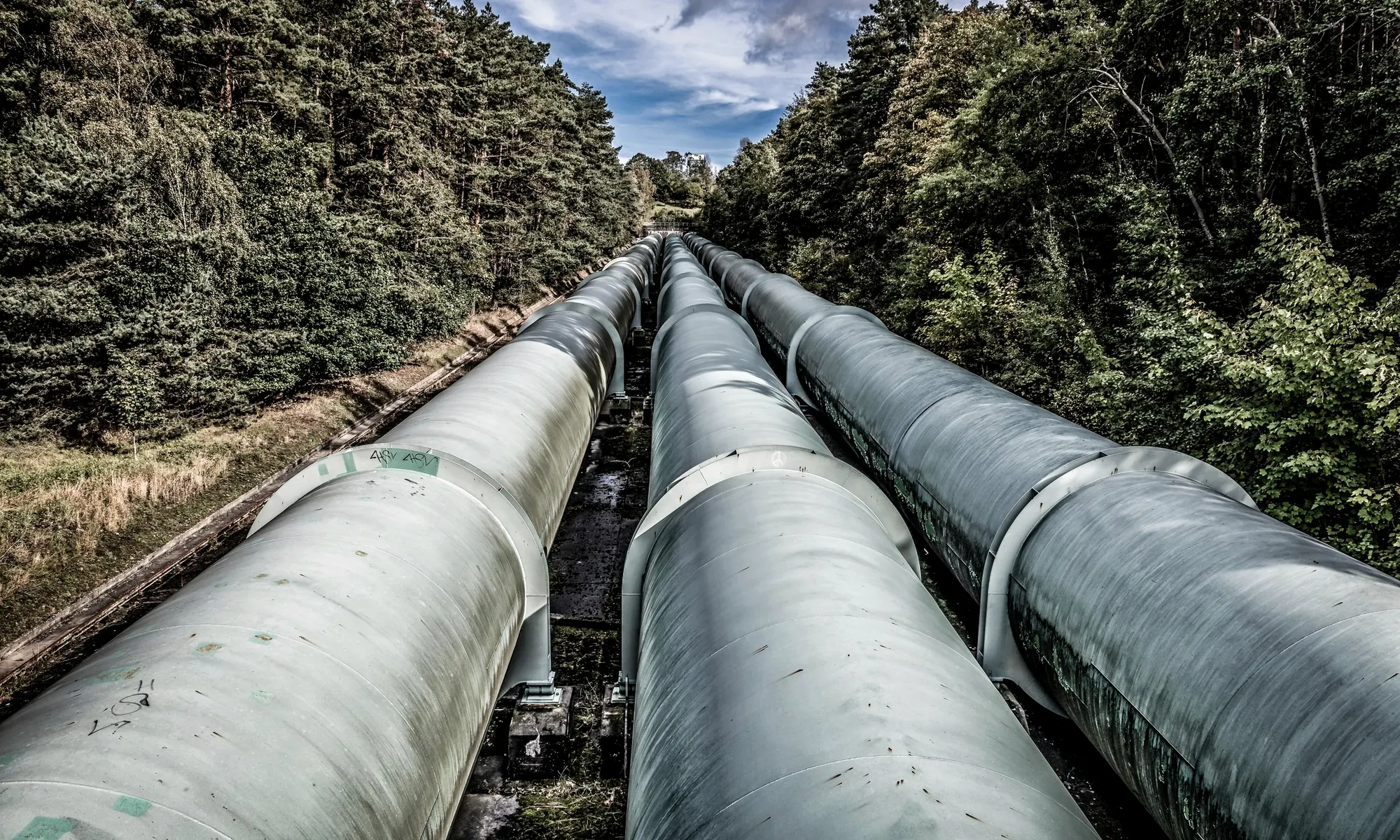

Water and infrastructure
Pipelines, cooling water and marine
Clients
Who we supply
Non-ferrous smelters, steel plants and EPC contractors, including Hindustan Zinc projects at Debari and Chanderiya.
- AM/NS IndiaHazira blast furnace packages
- Tata SteelSteel plant piping and flanges
- JSW SteelSteel plant piping and flanges
- SAILSteel plant supplies
- Jindal SteelDomestic and export flange orders
- Hindustan ZincDebari, Chanderiya and Kansariguda projects
- Utkal AluminaProcess plant supplies
- Larsen & ToubroEPC packages across metals and mining
- Lloyds Engineering WorksCarbon steel forged flanges
- Cochin ShipyardMarine piping components
- Summits HygronicsProcess equipment components
One group, one order
Complete your package with Teshi Group
Flanges, fittings, pipe, bolting and fabrication on one purchase order, with one set of documents.

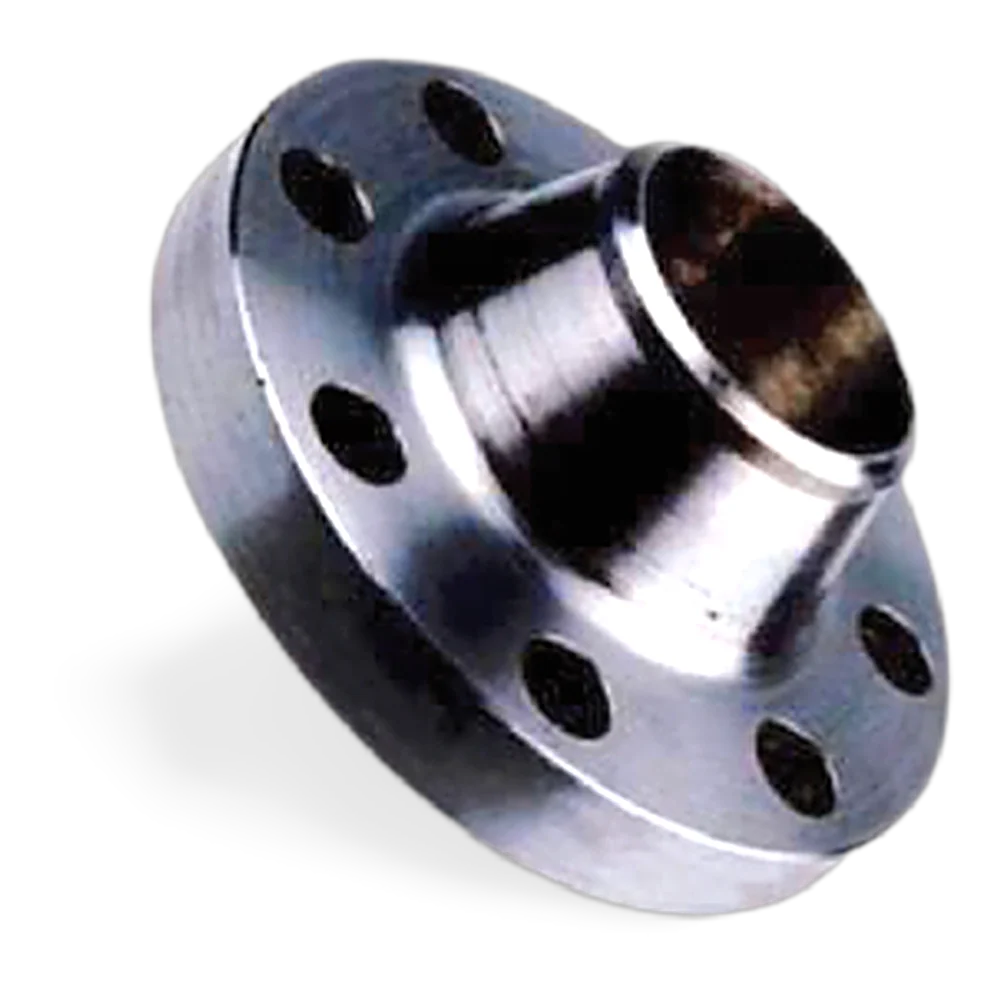

Teshi FittingsForged flanges to ASME B16.5, B16.47, EN 1092-1 and IS 6392, and B16.11 forged fittings

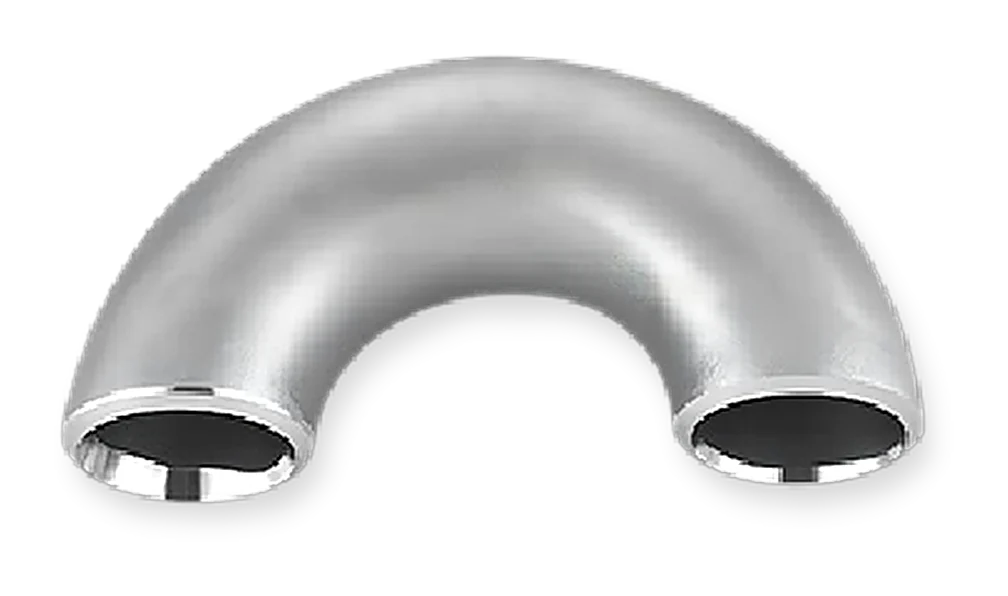

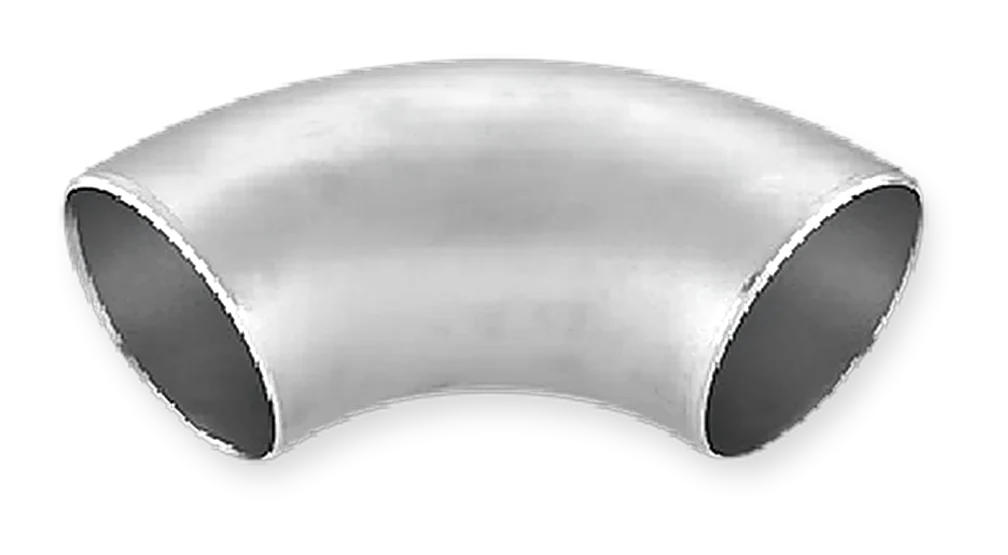

PipeFittings.co.inASME B16.9 elbows, tees, reducers, stub ends and MSS SP-97 olets

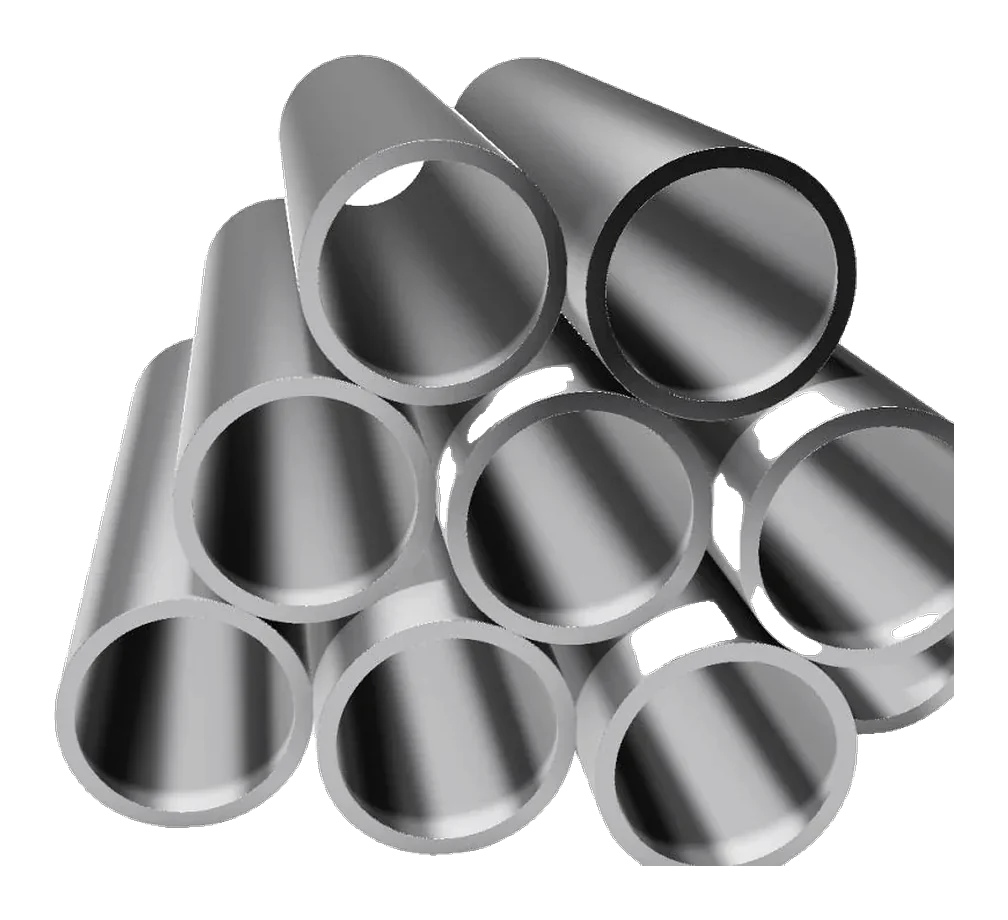

Teshi PipesSeamless and welded pipe in stainless, duplex, alloy, nickel and carbon steel

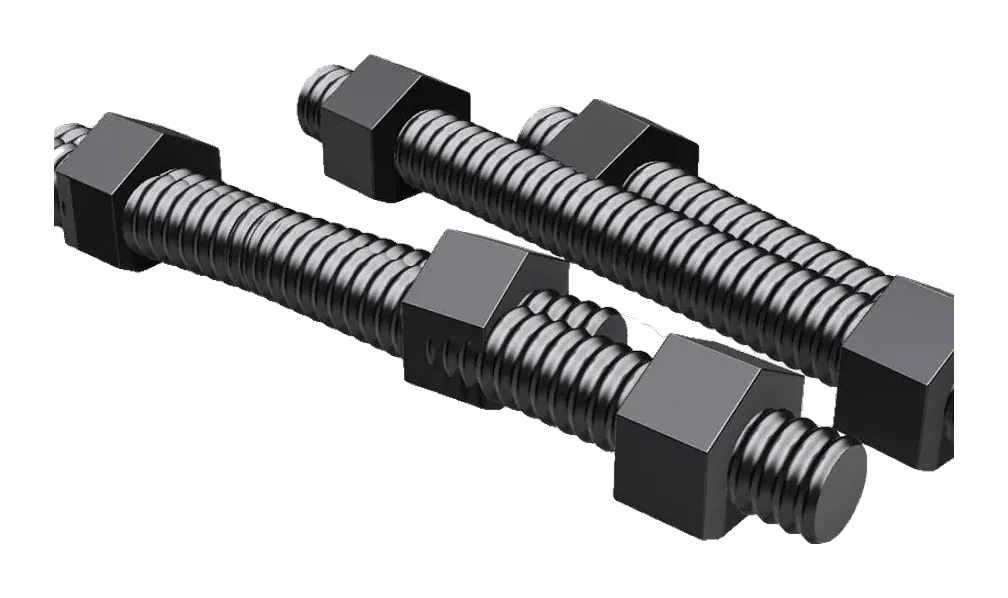

Teshi FastenersASTM A193, A194 and A320 stud bolts and nuts, plus exotic-alloy bolting

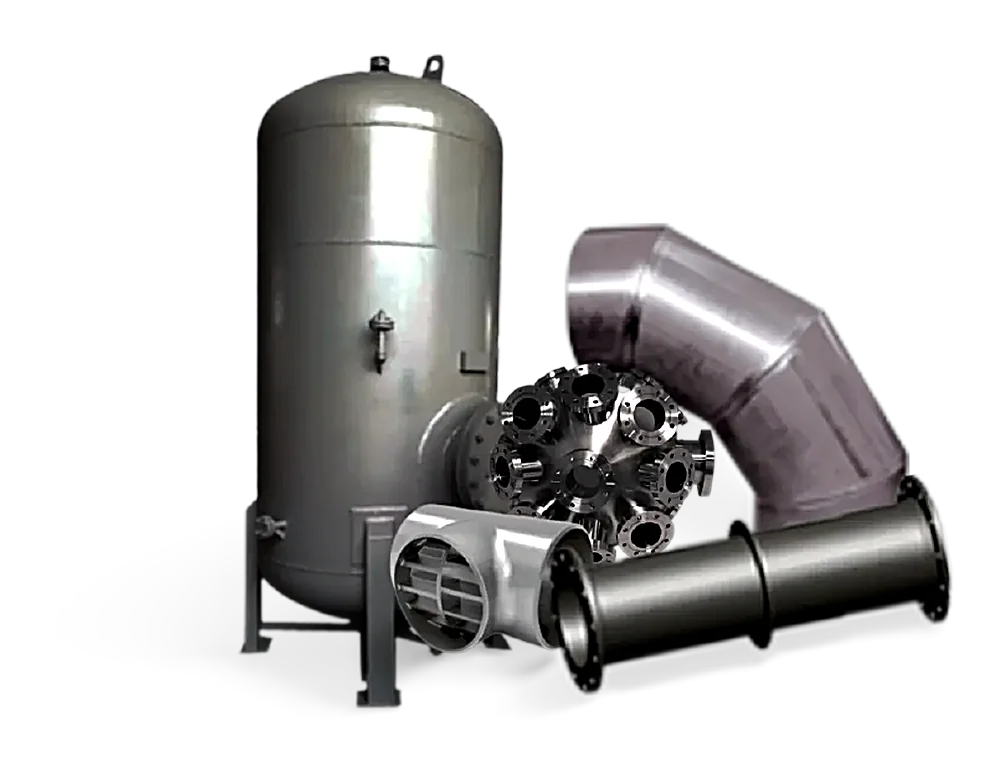

Teshi Heavy FabricationsBlast furnace nozzles, rolled pipe, ducts, mitre bends and plate flanges to drawingFAQ
Questions buyers ask
What does Teshi Process Solutions supply?
Prefabricated pipe spools and piping assemblies made to your isometrics, in corrosion-resistant alloys and conventional steels, using flanges, fittings and bolting we manufacture ourselves.
Do you design process systems?
We fabricate to the client's or licensor's design: isometrics, P&IDs and specifications. Material selection support is offered as guidance; process design responsibility stays with your engineering team.
Which alloys do you fabricate?
Carbon and chrome-moly steel, 304L and 316L, 904L, 254 SMO, duplex and super duplex, titanium, nickel alloys and copper-nickel.
Are spools hydrotested before dispatch?
Spools are tested as your QAP requires, typically NDT on shop welds and hydrotest where specified, then cleaned, capped and tagged.
Request a quote
Get a spool quotation
Send your BOQ, drawing or tender reference. You deal directly with the manufacturer.
- Reply from our estimation team, usually within one working day
- Carbon steel to titanium on one order
- EN 10204 3.1 or 3.2 certificates, third-party inspection welcome
- ISO 9001:2015 certified and IBR approved, since 1971
Drawings and BOQ spreadsheets are easiest by email. Mention your project name.
